Description
KARTT 4500 lbs Electric Winch with steel wire
4500 lbs (20kN) 12v Electric Winch with steel wire rope for light trailers, ATVs.
All KARTT winches are EN14492:1 Compliant for professional use and waterproof rated to IP 67.
P/N (WK45012WB)
Max pulling force 2041 kg
Supply voltage: 12 V
Gearing: 3-stage planetary
Gear ratio: 266:1
Clutch lever: manual
Brake: automatic 100% Load Holding
Rope: wire 5.5mm x 15.2m
Remote: wired & wireless
Installed weight: 13.2 kg
Gross/Shipping weight: 14.1 kg
Certificate: CE
ROPE SPEED | POWER CONSUMPTION IN A
Line Pull 0 kg 7.35 m/min, 26A
Line Pull 2041 kg 1.65 m/min, 238A
INCLUDES
Winch
Roller fairlead
Wire cable with hook
Wired/wireless hand held remote control
Hand held switch
RECOMMENDED ACCESSORIES
Neoprene winch cover
Mounting Plate P/N WKS010

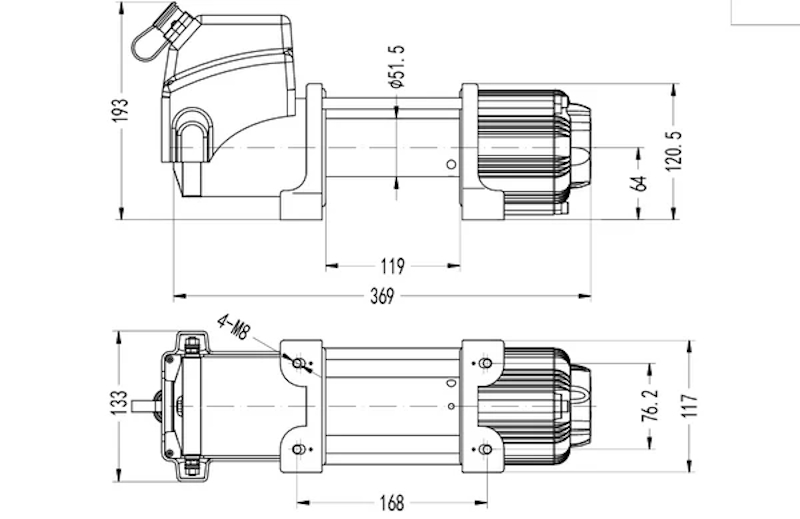

Bolt Hole Mounting Centres 76mm x 168
Outer Case Dimensions 44.5 x 26.5 x 28.5cm
