All KARTT winches are EN14492:1 Compliant for professional use and waterproof rated to IP 67.

P/N WK95012W

Max pulling force 4309 kg
Supply voltage: 12 V
Gearing: 3-stage planetary
Gear ratio: 218:1
Clutch lever: manual
Brake: automatic 100% Load Holding
Rope: wire 8.3mm x 26m with hook
Remote: wired & wireless
Installed weight: 37.5 kg
Gross/Shipping weight: 38.8 kg
Certificate: CE

ROPE SPEED | POWER CONSUMPTION IN A
Line Pull 0 kg 6.8 m/min, 74A
Line Pull 5216 kg 1.46 m/min, 350A

INCLUDES
Winch
Roller fairlead
Wire cable with hook
Wired/wireless hand held remote control
Wired switch

RECOMMENDED ACCESSORIES
Neoprene winch cover
Mounting Plate

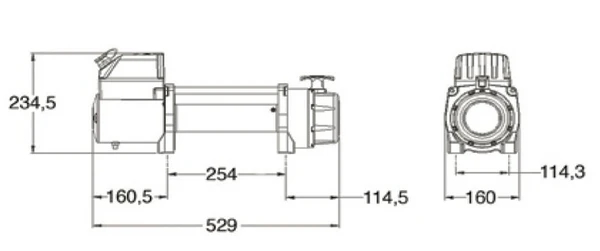

Bolt Hole Mounting Centres  254mm x 114.3

Outer Case Dimensions 59.5 x 31.5 x 31cm
